ARROW Race-Tech Homologated Exhaust KTM 690 SMC / R 19-24 | 690 ENDURO / R 19-24 Aluminum Black

ARROW RACE-TECH 72624AKN silencer in black aluminum for KTM 690 SMC / R 19-24 | 690 ENDURO / R 19-24

The silent one Race-Tech It was the first diamond-shaped exhaust, replacing traditional cylindrical or elliptical exhausts. This innovative design allowed Arrow to reduce size without compromising internal volume or performance, while keeping noise levels within acceptable limits.

Manufactured with stainless steel internal components and high-tech TIG welding, the Race-Tech optimizes gas flow thanks to strict dimensional control. The rear end and exhaust outlet are designed to minimize turbulence and negative pressure effects.

Available in titanium, carbon fiber and aluminum, the silencer Race-Tech It also has homologated versions for most motorcycles. For some motorcycles, the titanium model includes a carbon fiber finish.

The Race-Tech exhaust is a masterpiece of engineering, designed to deliver exceptional performance and a stunning sound. With a deep, resonant tone, this exhaust adds a sporty touch to the engine sound, enhancing the driving experience.

Technical characteristics

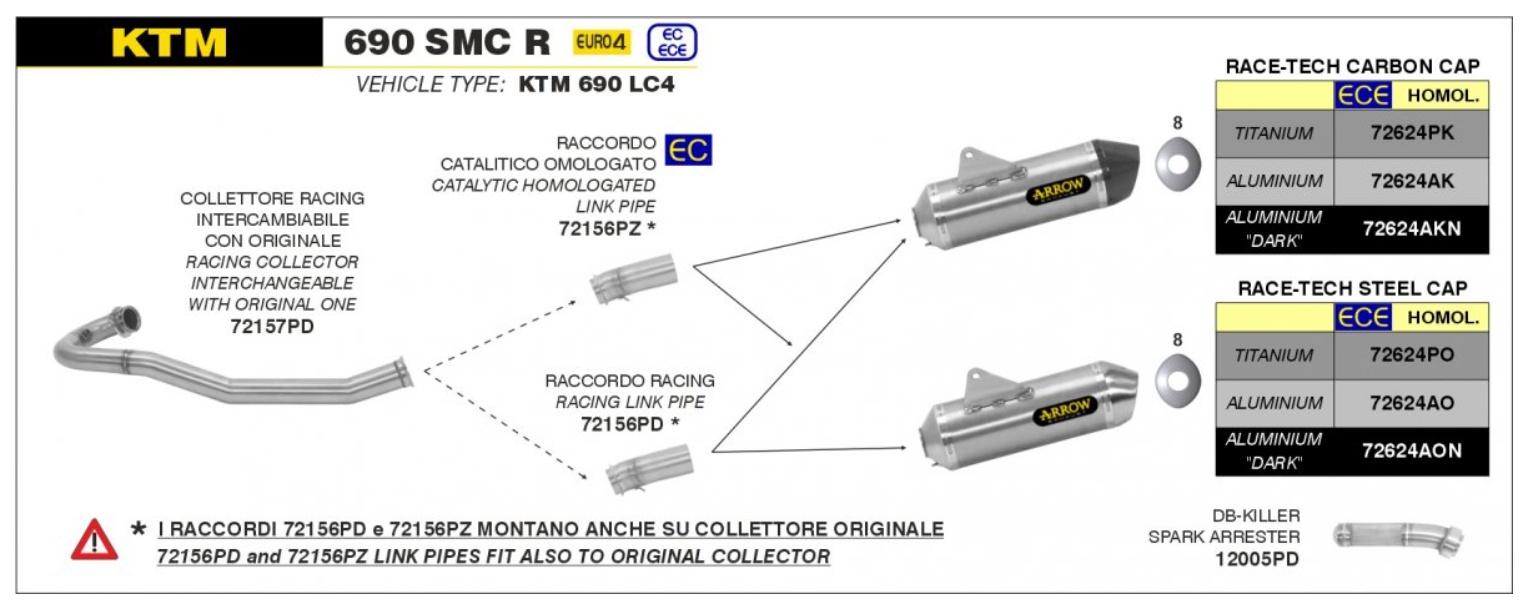

• IMPORTANT: Do I need to buy anything else to mount it on my KTM 690 SMC / R 19-24 | 690 ENDURO / R 19-24? MANDATORY : Gas Gas ES 700 2022-2024: This exhaust 72624AKN must be mounted with one of the following link pipes: 72156PZ | 72156PD. Otherwise, you will not be able to mount the Arrow exhaust on your motorcycle.
• IMPORTANT: Do I need to buy anything else to mount it on my KTM 690 SMC / R 19-24 | 690 ENDURO / R 19-24? MANDATORY : KTM 690 Enduro R 2021-2024: This exhaust 72624AKN must be mounted with one of the following link pipes: 72156PZ | 72156PD. Otherwise, you will not be able to mount the Arrow exhaust on your motorcycle.
• IMPORTANT: Do I need to buy anything else to mount it on my KTM 690 SMC / R 19-24 | 690 ENDURO / R 19-24? MANDATORY : KTM 690 Enduro R 2019-2020: This exhaust 72624AKN must be mounted with one of the following link pipes: 72156PZ | 72156PD. Otherwise, you will not be able to mount the Arrow exhaust on your motorcycle.
• IMPORTANT: Do I need to buy anything else to mount it on my KTM 690 SMC / R 19-24 | 690 ENDURO / R 19-24? MANDATORY : KTM 690 SMC R 2019-2020: This exhaust 72624AKN must be mounted with one of the following link pipes: 72156PZ | 72156PD. Otherwise, you will not be able to mount the Arrow exhaust on your motorcycle.
• IMPORTANT: Do I need to buy anything else to mount it on my KTM 690 SMC / R 19-24 | 690 ENDURO / R 19-24? MANDATORY : KTM 690 SMC R 2021-2024: This exhaust 72624AKN must be fitted with one of the following link pipes: 72156PZ | 72156PD. These must be fitted with Arrow 72157PD headers. Otherwise, you will not be able to fit the Arrow exhaust to your bike.
• The DB-Killer is removable ; depending on the model, it comes either riveted or welded. However, it is removable, as Arrow offers the DB-Killer as a replacement in case it is lost, damaged, or broken.

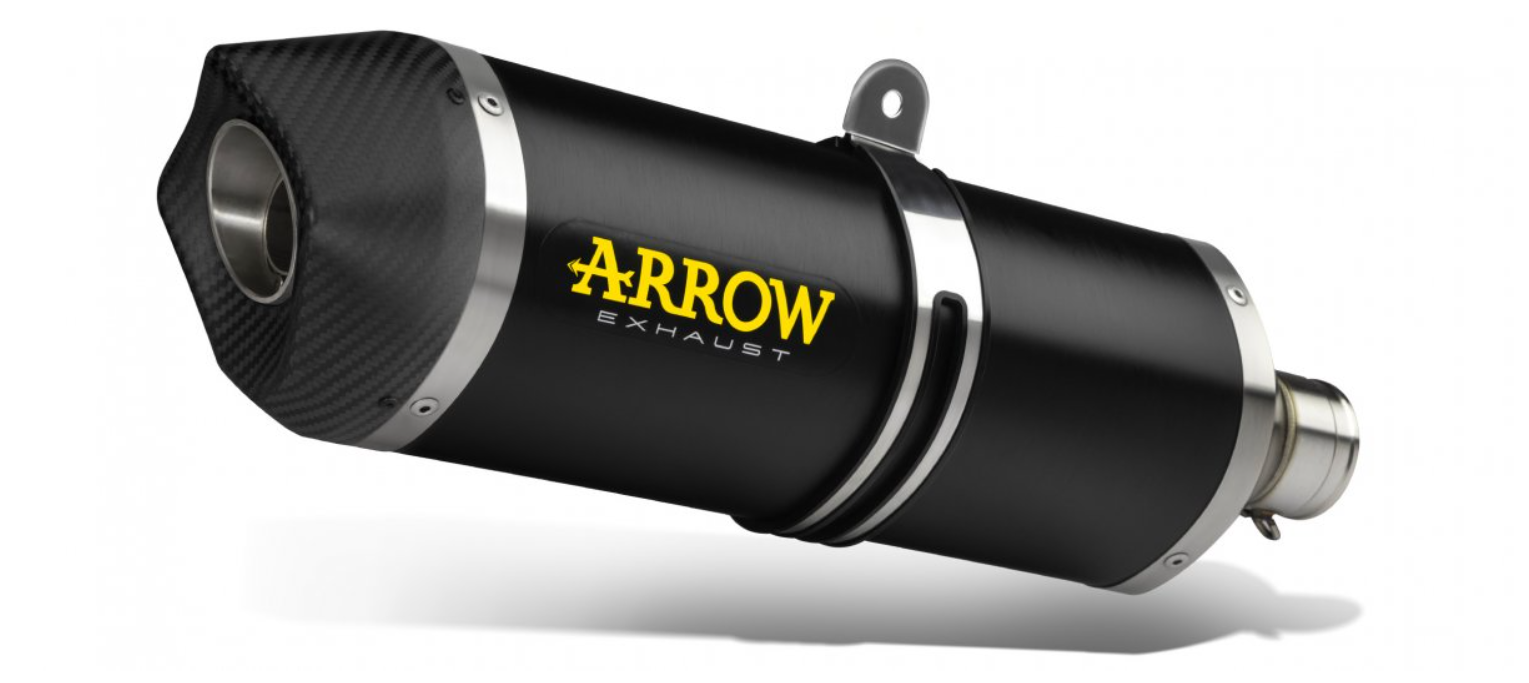

• Description: Race-Tech "Dark" aluminum silencer with carbon end cap
• Exhaust body length (mm): 320.00
• Inlet diameter (mm): 54.00
• Outlet diameter (mm): 50.00
• dBKiller: Yes
• Lambda Probe: No
• CO probe: No
• Weight: 2.23
• Description: Dark aluminum
• Description: carbon
• Description: welded bracket

Is the ARROW 72624AKN exhaust approved for KTM 690 SMC / R 19-24 | 690 ENDURO / R 19-24?

• Approval for sound emission DB(a): YES
• CO2 gas emission approval: YES

IMPORTANT:

• Gas Gas ES 700 2022-2024 : The exhaust is approved for EURO 5, EC ECE provided you purchase the Arrow 72156PZ homologated link pipes separately. It is mandatory to purchase the link pipe separately in order to be able to mount the exhaust on your motorcycle: the homologated link pipe: 72156PZ. Otherwise, you would not be able to do so.
• KTM 690 Enduro R 2021-2024 : The exhaust is homologated for EURO 4, EC ECE provided you purchase the homologated Arrow link pipes 72156PZ separately. It is mandatory to purchase the link pipe separately in order to be able to mount the exhaust on your bike: the homologated link pipe: 72156PZ. Otherwise, you would not be able to do so.
• KTM 690 Enduro R 2019-2020 : The exhaust is homologated for EURO 4, EC ECE provided you purchase the homologated Arrow link pipes 72156PZ separately. It is mandatory to purchase the link pipe separately in order to be able to mount the exhaust on your bike: the homologated link pipe: 72156PZ. Otherwise, you would not be able to do so.
• KTM 690 SMC R 2019-2020 : The exhaust is homologated for EURO 5, EC ECE provided you purchase the homologated Arrow link pipes 72156PZ separately. It is mandatory to purchase the link pipe separately in order to be able to mount the exhaust on your bike: the homologated link pipe: 72156PZ. Otherwise, you would not be able to do so.
• KTM 690 SMC R 2021-2024 : The exhaust is approved as long as you purchase the approved Arrow 72156PZ link pipes separately. It is mandatory to purchase the link pipe separately in order to mount the exhaust on your bike: the approved link pipe: 72156PZ. Otherwise, you would not be able to do so.

What material is it made of?

The body of the silencer is made of aluminum , which allows the exhaust to be much lighter compared to steel. This material also dissipates heat more effectively , contributing to improved performance. Aluminum is highly corrosion resistant and has a shiny appearance . In addition, the exhaust features a black finish , which is achieved thanks to a ceramic-based painting process, resulting in a more aggressive look .

Which motorcycles is the ARROW 72624AKN compatible with?

• Gas Gas ES 700 2022-2024
• KTM 690 Enduro R 2021-2024
• KTM 690 Enduro R 2019-2020
• KTM 690 SMC R 2019-2020
• KTM 690 SMC R 2021-2024
